Tag Archives: SSIS expressions

Pragmatic Works, SSIS

Sneak Peek: Advanced Conditional Split Transform in Task Factory 3.0

IMG_8325

You may have seen my previous blog post a couple weeks back highlighting some of the neat things the dev team of Pragmatic Works is including in the latest build of Task Factory. Well I was doing some more sneaking around and I was able to snag these screen shots of the new and still experimental Advanced Conditional Split Transform!

I think one of the biggest and coolest improvements is the new functions made available for us in Advanced Conditional Split Transform. IMG_8328You’ll notice the editor for this transform is very similar to the Advanced Derived Column Transform we looked at last time. Now you have access to a ton more functions and expression that allow you to do some very cool things, like data cleansing with Regex, encrypting/decrypting fields, and access parts of file names with an expression. The SSIS expression language has been vastly improved and expanded in these transforms and is now more intuitive and easier to use than ever before.

IMG_8327One of the other things that is new with the Advanced Conditional Split transform included in Task Factory 3.0 is the ability to test and validate expressions within the editor for the Advanced Conditional Split transform. Not only can you validate your expressions in the editor before run time, you can actually test the performance of the expression you have written by specifying a number of iterations to test the expression with. This should give you a good idea of how the expression will perform during run time. This is a feature we haven’t had before. Now those of us who are SSIS developers will be able to test, fine tune, and retest our SSIS expressions!

This new generation of SSIS tasks and transforms are going to change the way I build my SSIS packages due to the new flexibility and power. Stay tuned for future posts on some of the incredible improvements and additions that are going to be available in the next version of Task Factory by Pragmatic Works.

Pragmatic Works, SSIS

Sneak Peek: Super Advanced Derived Column Transform In Next Release of Task Factory

2 Comments

Don’t ask how I was able to acquire these screenshots or what favors I may or may not have performed in order to snag these pics of the next release of Task Factory. I’m not proud of what I’ve become. But the fact of the matter is that Task Factory 3.0 is going to be insane!

Task Factory 3.0 has about 10 or so new tasks and transforms that radically expand the power of SSIS. One of the new Data Flow transforms included in Task Factory 3.0 is the Advanced Derived Column Transform. The Advanced Derived Column Transform includes a ridiculous amount of new expressions and functions. Sources tell me to expect around 180 or so total functions in the Advanced Derived Column Transform.

I snagged these screenshots which show some of the new functions. You can see what appears to be a host of Regular Expression functions available for use in the transform! Yes! It’s about time!

IMG_8082

Also, it appears there a bunch of pretty interesting functions having to do with parsing file paths and names, such as GetDirectoryName, GetFileName, and GetFullPath, among others.

IMG_8083

One of the coolest features of the Advanced Derived Column Transform that I’m really excited about is the Expression Validation pane. Not only can you validate your expression and preview the expression results, you can also test your expression for performance!

IMG_8084

This new version of Task Factory is going to be sick. Keep on eye on PragmaticWorks.com for news of the release, which I’m told should be sometime in the next month. I’ll keep you posted so keep checking back here for more information.

Pragmatic Works, SSIS

Manage, Save, and Share SSIS Expressions

If you’re even slightly familiar with SSIS you know that one of the incredible strengths of SSIS is the ability to make packages dynamic in countless different ways. One of the ways SSIS accomplishes this is through the use of SSIS expressions and the expression language.

BI xPress has a really useful feature called Expression Manager. The Expression Manager is a very cool feature that allows an SSIS developer to create, share, and manage custom SSIS expressions.

Creating your own SSIS expressions is very easy. Simply open BI xPress and click the Expression Manager button in the top right of the window.

Capture 2

Or if you’re already developing a package in BIDS, go to your variables window and click the Expression List icon.

Capture 3

Now that the Expression Manager is open, we can browse the canned SSIS expression or create our own. Let’s create our own custom SSIS expression for us to use later on or share with our development team.

First, click the Create New Expression icon.

Capture 4

Then give your expression a name and a description. My expression is going to append the user’s name and the date to create a file name. Here you can see the expression.

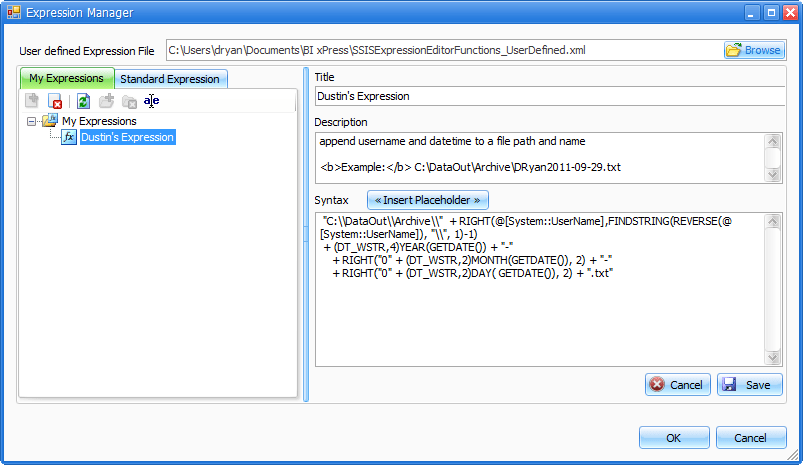

Capture 5

And in case you want to copy it for use:

"C:\\DataOut\\Archive\\"  + RIGHT(@[System::UserName],FINDSTRING(REVERSE(@[System::UserName]), "\\", 1)-1)
+ (DT_WSTR,4)YEAR(GETDATE()) + "-"
   + RIGHT("0" + (DT_WSTR,2)MONTH(GETDATE()), 2) + "-"
   + RIGHT("0" + (DT_WSTR,2)DAY( GETDATE()), 2) + ".txt"

In my expression you can see that I leverage the UserName system variable to get the name of the user executing the package. I use FindString and Reverse to eliminate the domain and \ from the UserName, as well. Once you’re done, click Save and then click OK to close the Expression Manager.

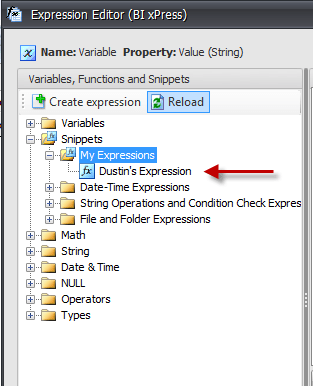

Now that our expression is saved, we can use our expression in our SSIS packages. To utilize our expression in the package all we need to do is the use the BI xPress Expression Editor. We can clearly see our new expression in the My Expressions folder.

Capture 6

Besides allowing a user to manage their own custom SSIS expression, the Expression Manager features a host of canned, commonly used SSIS expressions. This drastically reduces the learning curve of the expression language. The Expression Manager comes with expressions that can create a file path and name with the date appended, create a dynamic SQL statement, or calculate the beginning of the previous month, just to name a few.

Capture 1

As you can see, the Expression Manager is a very powerful tool that allows you to fully realize the power of the SSIS expression language. To download a free trial version of BI xPress, check out PragmaticWorks.com.
