#MDXMonday: Finding the Current Day

This week I’m teaching the Pragmatic Works Intro to MDX virtual training class. A student in the class asked how they could find the current day sales amount using MDX (no SSAS functionality) and I thought this was a worthy blog topic. This solution assumes that the cube is processed at least once a day as the query you’re about to see returns the last day in the cube that we data for.

View previous posts in the #MDXMonday series

The first part is where the most work takes place. I created a named set to identify

Continue reading #MDXMonday: Finding the Current Day

#MDXMonday: Previous Year Month to Date Calculation

I recently had a client give us a call asking for helping creating a calculation in her cube to show the month to date value for the previous year. Here’s the basics of the calculation I created.

View last week’s #MDXMonday –> Calculating Daily Average Sales

This calculation involve two parts. First we must create a calculation that figures the month to date value of the measure in question. To do this I used the MTD function along with Continue reading #MDXMonday: Previous Year Month to Date Calculation

#MDXMonday: Calculate Daily Average Sales

Creating an SSAS MDX calculations for daily average sales is a pretty common requirement I’ve come across as a consultant for Pragmatic Works and as the instructor for Pragmatic Works Introduction to MDX class. Because of this and the fact that many people often come to me with their MDX challenges, I’ve decided to start a series of blog posts covering these challenges and experiences both as a reference for myself and other and also as a way to give back to the community. These examples will be done using the Adventure Works cube unless otherwise stated. Some of these will be simple and some will be more complicated but I hope you will enjoy learning a little bit about MDX as much I do so lets begin!

There are two basic parts to creating this calculation. The first step is Continue reading #MDXMonday: Calculate Daily Average Sales

Navigating Hierarchies with MDX webinar recording is now available!

image Thanks to everyone that attended my webinar on Navigating Hierarchies with MDX! We looked at a bunch of different ways we can navigate up, down, and side to side in our hierarchies in order to do some really neat things with calculations. If you would like to view the recording, you can do that here completely for free! Also, if you’d like to view my PowerPoint slide deck and scripts I used for the webinar, you can download those from here. Just download the Navigating Hierarchies with MDX .zip file. 🙂

Now on to the questions!

Q: Is there anything like storeproc / pre stroed mdx query in SSAS which can be called in .net application.
A: There is a concept of SSAS stored procedures, which you can read more about here: http://msdn.microsoft.com/en-us/library/ms176113.aspx and here: http://asstoredprocedures.codeplex.com/

Q: How would ParallelPeriod handle a leap year?
A: ParallelPeriod returns the member at the same position in the specified period. So if the 29th day of February does not exist in the previous year, then no value will be returned:

Q: Can you use PeriodsToDate() on a ‘custom’ period like an Academic Term?
A: PeriodsToDate can be used on any user defined hierarchy.

Q: Setting date property for MTD, QTD seems straightforward.  What about WTD (week-to-date)?  It seems it might take some careful work each year.
A: If you have a Week attribute in your Date dimension, that should be set to Week, as well. That’s all that is required. 🙂

Q: What is the name of the zoom tool and highlighter used, just curious.
A: Zoomit. It’s free, too! I get asked that question every time I present.

Thanks for all the great questions, everyone! If you have any further questions, please feel free to post it here or to send me a tweet!

The MDX Rank Function

If you read my blog regularly, you may have seen this post from last week where a reader asked how to create  set to get the top 5 members while lumping every member outside of the top 5 into an “Others” member. As a follow up question, another reader asked how we can rank the members being displayed.

We can create a numeric ranking of the Customers by leveraging the MDX Rank function. The Rank function Continue reading The MDX Rank Function

Creating Calculated Members with MDX

This week I got an email from a reader named Brad asking a specific question regarding MDX. Here is his question:

I need an MDX query to return me the top 5 values and then default all others to an “other” group and ranks based on the resulting measure value.  For instance, if we are talking about a measure by month for a full year, I need the output to look like this:

Dim   Measure   Rank

Nov      $500        1
Mar      $400        2
Feb      $300         3
Jan      $200         4
Dec      $100         5
Other  $350         6

Any input will be most appreciated!

Thanks,

Brad

I thought this was a good question which is why I thought I’d take the time to blog this out. In this example I’ll be using the Adventure Works cube and the Adventure Works Customer dimension.

The first step is to determine what are our Top 5 Customers. To do this, we can use a simple TopCount function to build a set of the Top 5 Customers.

with dynamic set [Top 5 Customers] as

Topcount(
[Customer].[Customer].[Customer].members,
5,
[Measures].[Internet Sales Amount]
)

Once we have our Top 5 Customers, then we can easily determine everyone else. To create our custom “Others” group, we need to create a Calculated Member (Custom Member). To create the Calculated Member, you need to specify the dimension, attribute hierarchy, and member name for your custom member (ie [Customer].[Customer].[Others]).

member [Customer].[Customer].[Others] as

Aggregate(
Except(
[Customer].[Customer].[Customer].members,
[Top 5 Customers]
)
)

To create our Others custom member, we need to use the Except function to basically specify that we want our custom member to include all our customers except the Top 5 Customers set we previously created. Also, don’t forget to wrap the set in the Aggregate function.

Lastly, we create our set that will actually be used in our query. This set will include our first set containing our Top 5 Customers as well as our Others custom member. We can use the Top 5 Customers set with our custom member because all members in the set are from the same Customers hierarchy.

dynamic set [Top 5 & Others] as
{
[Top 5 Customers],
[Customer].[Customer].[Others]
}

Now all that’s left to do is to use our set in a query. Here’s the entire query so you can see the total syntax.

with dynamic set [Top 5 Customers] as

Topcount(
[Customer].[Customer].[Customer].members,
5,
[Measures].[Internet Sales Amount]
)



member [Customer].[Customer].[Others] as

Aggregate(
Except(
[Customer].[Customer].[Customer].members,
[Top 5 Customers]
)
)

dynamic set [Top 5 & Others] as

{
[Top 5 Customers],
[Customer].[Customer].[Others]
}

Select [Measures].[Internet Sales Amount] on 0,


[Top 5 & Others] on 1


From [Adventure Works]

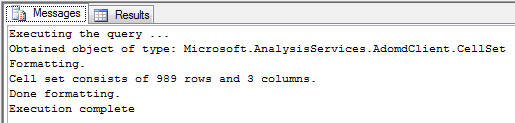

And here’s the results in the SSMS query results windows.


I hope that was pretty straight forward and not too confusing. If you thought this was helpful leave me a comment and let me know! And if you have any questions or comments, feel free to leave a comment.

Thanks again, Brad, for the great question!

Check out my next blog post to see how to return the numeric rank of the customers!

Do You Know Why Your MDX Query Is Slow?

Performance tuning MDX queries can often be a daunting and challenging task. But the first step in deciding where to begin your efforts to improve the performance of your query is to diagnose the source of the problem. There are two areas that could be causing our performance issue: 1. The design of our SSAS solution or 2. The design of our query. We need to figure out if we’ve written a bad query or designed a bad cube :).

How Do We Test The Query?

Usually an issue is discovered when a user comes to the BI team with a report that appears to be running slowly. So for our example, I have a pivot table in an excel workbook that is running a little slow. Let’s walk through this together and diagnose what the problem could be. Below here you can see the pivot table.


The first thing you’ll need to do is test the query and the best way to do this is to execute the query in isolation so that we can eliminate outside factors as part of the problem. So in this example I would execute the report outside of business hours. I want to make sure I do this outside of peak use time because one of the things I’ll need to do is clear the cache. In order to prevent SSAS from satisfying our query by leveraging the formula cache and the storage engine cache, we need to execute a ClearCache command to prevent our results from being corrupted. To do this, I’ll execute the following XMLA script in SSMS.



<ClearCache xmlns=”http://schemas.microsoft.com/analysisservices/2003/engine>
     <Object>
          <DatabaseID>AdventureWorksDW2012MutliDimensional-EE</DatabaseID>
          <CubeID>Adventure Works</CubeID>
     </Object>
</ClearCache>



Also, I’ll execute the following MDX to initialize my cube’s MDX script.



Select {} on 0
From [Adventure Works]

For us to figure out how long our query is taking to execute, we’re going to fire up SQL Server Profiler and execute a trace against SSAS while we execute the query so we can gather all the nitty gritty details of our query execution. By running a trace, we will be able to see all kinds of really helpful details like the total duration of the query, the partitions being queries, if aggregations are being used to answer the query, which attributes are being used, and much more.

To begin our trace, go to Tool > SQL Server Profilers in SSMS.


Flip the Server type to Analysis Services and set the Server name to your SSAS instance that is home to the SSAS database your report is pointed at.


Next you’ll see the Trace Properties window. Go to the Events Selection tab, and check the check box near the bottom right of the window to Show all events. Scroll down a little more than half way and find the events “Get Data From Aggregation” and “Query Subcube Verbose.” The “Get Data From Aggregation” event is fire when an aggregation is used to satisfy a query. This event is also especially helpful when trying to determine if the aggregations you have designed are actually useful. The “Query Subcube Verbose” event will give you very detailed information on which members from which dimension attributes are being queried to satisfy the query. Click Run when you’re done.


Now that the trace is running, its time to conduct our test.

1. The first thing I’ll do is execute the Clear Cache command.



<ClearCache xmlns=”http://schemas.microsoft.com/analysisservices/2003/engine>
     <Object>
          <DatabaseID>AdventureWorksDW2012MutliDimensional-EE</DatabaseID>
          <CubeID>Adventure Works</CubeID>
     </Object>
</ClearCache>



2. Initialize the Calculation script in your cube.



Select {} on 0
From [Adventure Works]
3. Execute the report/query. In my case, my report is an Excel pivot table, so I’ll simply click the refresh button in Excel to execute my query.

The report may take a few seconds or minutes to run depending on the query, but it should probably take longer than you’re used to simply because the query is running against an empty cache and SSAS will have to retrieve all of the data from storage.

When the query is finished executing, pause your Trace in SQL Server Profiler by clicking the pause button at the top of the Trace window. Now its time to take a look at the results. Find the Query End event in the Trace results. Find the Duration column. This number displays the total query duration in milliseconds. In my example, my query took just over 13 seconds to execute. So its not unbelievably slow, but certainly slower than we’d like.


In order to take a more in depth look at our query’s performance, lets save the Trace results to a SQL Server table so we can query it. Go to File > Save As > Trace Table.


Specify where you’d like to save the results and click OK.


Below you’ll see a very useful query that will break down where your query is experiencing a slow down. If you’re using this query for your testing, don’t forget to alter the From clause to query your trace table.



SELECT x.ConnectionID,
       x.QueryID,
       x.QueryDuration,
       p.SEDuration,
       CASE
WHEN p.SEDuration > x.QueryDuration THEN NULL ELSE x.QueryDuration - p.SEDuration
END AS FEDuration,
       y.[Number of SE Queries],
       y.[Thread Duration of SE Queries],
       w.[Aggregations Read],
       x.TextData
FROM   (SELECT a.ConnectionID,
               a.Duration AS QueryDuration,
               a.TextData,
               CAST (HashBytes('SHA1', CAST (reverse(CAST (TextData AS VARCHAR (MAX))) AS NVARCHAR (4000))) AS INT) AS QueryID
        FROM   MyTraceTable AS a
        WHERE  a.EventClass = 10) AS x -- Query End Event
       LEFT OUTER JOIN
       (/* Determine Query Subcube Verbose of Non-cache data */
       SELECT   ConnectionID,
                 COUNT(*) AS [Number of SE Queries],
                 SUM(Duration) AS [Thread Duration of SE Queries]
        FROM     MyTraceTable
        WHERE    EventClass = 12 -- Query Subcube Verbose
                 AND EventSubclass = 22 -- Non-cache data
        GROUP BY ConnectionID) AS y
       ON y.ConnectionID = x.ConnectionID
       LEFT OUTER JOIN
       (/* Determine Aggregations that are ready from */
       SELECT   ConnectionID,
                 COUNT(*) AS [Aggregations Read]
        FROM     MyTraceTable
        WHERE    EventClass = 60 -- Read from Aggregations
        GROUP BY ConnectionID) AS w
       ON w.ConnectionID = x.ConnectionID
       LEFT OUTER JOIN
       (/* Determine SE time */
       SELECT   ConnectionID,
                 SUM(Duration) AS SEDuration
        FROM     MyTraceTable
        WHERE    EventClass = 11 -- Query SubCube
        GROUP BY ConnectionID) AS p
       ON p.ConnectionID = x.ConnectionID;





The results here are very telling. The column “QueryDuration” shows us the total execution time of the query. The column “SEDuration” shows us the amount of time SSAS spent pulling the data from storage (Storage Engine). The column “FEDuration” shows how long SSAS spent calculating our queries results (Formula Engine).


In this particular example, the vast majority of our query’s execution time is spent in the Formula Engine. Of the 13+ seconds spent executing the query, the query spends more than 12 seconds in the Formula Engine and only 297 milliseconds pulling the data from storage. This tells us that the problem is probably not with the design our SSAS solution, but rather a poorly written query. Unfortunately, this being an MDX query generated by Excel, there’s not a lot we can do about altering the query.

How Do We Fix The Query?

Typically when deciding where to spend your performance tuning efforts you want to start in the area where your query spends more than 30% of its time (If its a 50/50 split make an educated decision). In the previous example, we’ve determined our problem is with the query.

What can I do to improve my MDX query?

If you determine your query’s problem is the query itself, ensure SSAS is utilizing subspace computation instead of cell by cell computation. SSAS will usually evaluate groups of cells in your cube at a time but in certain situations SSAS will evaluate cube space one cell at a time. We want to to avoid that. You can get a hint that SSAS is calculation your results one cell at a time if the query on our trace table shows a large amount of Storage Engine queries. Certain SSAS/MDX functions can disable subspace computation.

1. Late binding functions (ex. StrtoMember, StrtoSet functions)
2. Set aliases
3. LookupCube function

Also, check out this blog for more info on ways to improve your MDX query.

But what if the problem is my SSAS solution’s design?

If you conduct your test and determine the majority of the query duration is spent pulling the data from storage, there’s a lot to consider when discussing cube design best practices. But here are some brief highlights of things to consider.

1. Can we design aggregations to help our query? Look at your test results and see if aggregations are being used to satisfy the query.
2. Can we implement a partition design strategy that keeps SSAS from having to query larger partitions?
3. Are the right partitions being queried? For example, if your query is asking for data for 2010 and you notice in your trace that the partitions for all the other years are being queried, this could indicate that SSAS is having a hard time figuring out which partition has the correct data. You may need to set the Slice property on your partition.
4. Create Attribute relationships
5. Leverage Natural Hierarchies

There are many more best practices for cube design, but this is probably a good starting point.

If you’ve found this helpful, share it with a colleague or a friend and leave me a comment. Feel free to leave me a question or feedback in the comments here or send me a note on Twitter! I love discussing new ideas and learning so don’t hesitate!
